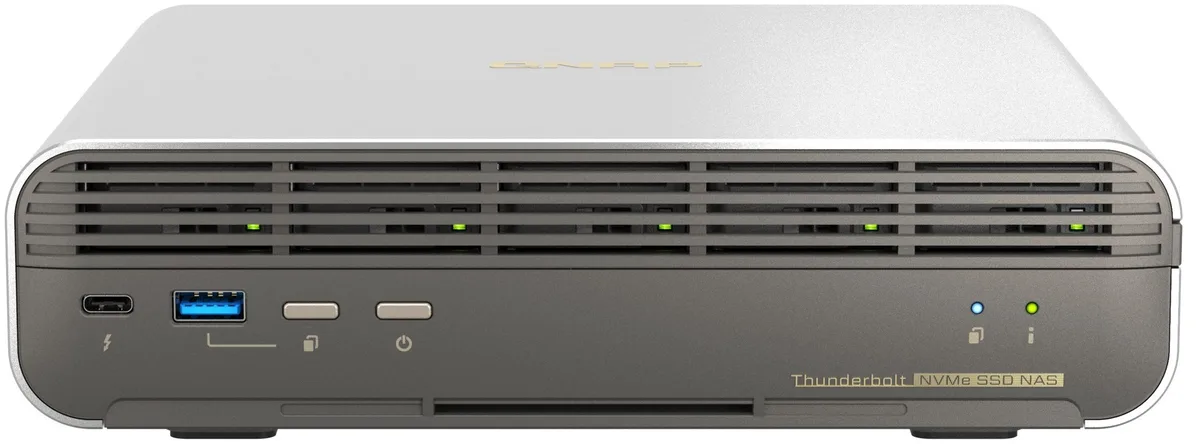

QNAP TBS-h574TX-i5U-16G /5×M.2 NVMe/i5-1235U/16GB/10GbE/Thunderbolt 4

מפרט המוצר

מותג

QNAP

קטגוריה

אחסון

מק״ט

10993

אחריות

24 months

TBS-h574TX is a Thunderbolt™ 4 all-flash NASbook designed for on-location shoots, small studios, small-scale video production teams, and SOHO users. Featuring an Intel® Core™ processor and high-speed I/O, TBS-h574TX enables online editing, visual effects (VFX), file transfer and backup for both Mac® and Windows® creators. Hot-swappable SSD support also ensures uninterrupted project flows. Pre-installed with QuTS hero OS, it supports ZFS data integrity, immutability, and advanced SSD optimization technologies. CPU Intel® Core™ i5-1235U, 10C (2P+8E)/12T, 4.4GHz CPU Architecture 64-bit x86 Graphic Processors Intel® Iris® Xe Graphics eligible Encryption Engine Yes Hardware-accelerated Transcoding Yes System Memory 16 GB on board (non-expandable) Maximum Memory 16 GB on board (non-expandable) Flash Memory 5GB (Dual boot OS protection) Drive Bay 5 x E1.S up to 15mm (5x PCIe Gen3 x2) Pre-install adapter to support M.2 2280 for each slots Drive Compatibility E1.S or M.2 2280 PCIe NVMe Heatsinks of M.2 must not exceed a height of 4.5 mm Hot-swappable Yes M.2 Slot 5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter) The system is shipped without SSD. For the SSD compatibility list, please visit https://www.qnap.com/compatibility/ SSD Cache Acceleration Support Yes 2.5 Gigabit Ethernet Port (2.5G/1G/100M) 1 10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) Wake on LAN (WOL) Yes Jumbo Frame Yes Thunderbolt Port 2 (Thunderbolt™ 4) Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported. USB 2.0 port 1 USB 3.2 Gen 2 (10Gbps) Port 2 HDMI™ Output 1, HDMI™ 1.4b Form Factor Set-top design LED Indicators Status, USB copy, SSD 1-5 Buttons Status, USB copy, Reset Dimensions (HxWxD) 60 × 215 × 199 mm Weight (Net) 2.24 kg Operating Temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) Power Supply Unit 120W Adapter (19VDC output, 100-240VAC input) Power Consumption: Operating Mode, Typical 46 W Fan System fan: 2 x 40mm System Warning Buzzer Standard Warranty 3 Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1500
