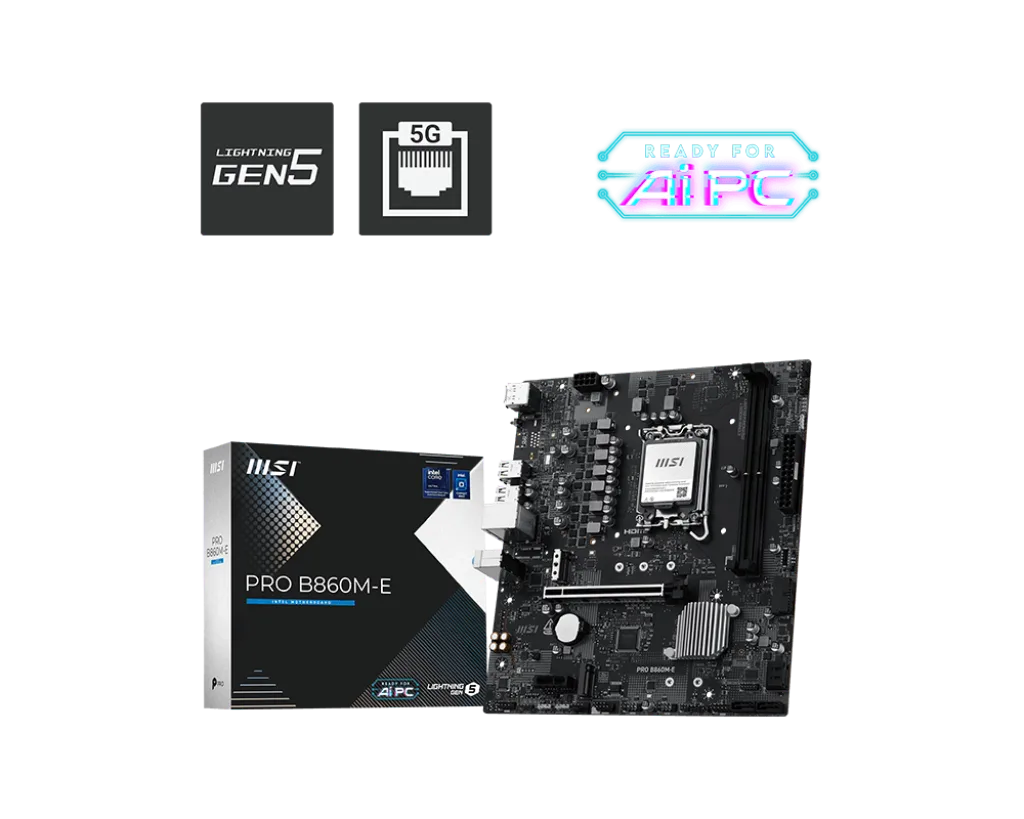

לוח אם PRO B860M-E

מפרט המוצר

מותג

MSI

קטגוריה

לוחות אם

תמיכה במעבד

Supports Intel® Core™ Ultra Processors (Series 2)

תושבת

LGA 1851

מערכת הפעלה

Support for Windows® 11 64-bit

תצורת לוח אם

mATX (220mm × 243.84mm)

זיכרון

2× DDR5 UDIMM, Maximum 128GB

תמיכה בזיכרון

DDR5 9066–4800 (JEDEC), Dual-Controller Dual-Channel, Non-ECC, Un-buffered, Intel® XMP 3.0, CUDIMM

Max Overclocking Frequency

1DPC 1R: 9066+ MT/s, 1DPC 2R: 7200+ MT/s

M.2 Slot

2× M.2 slots: M.2_1 (CPU) PCIe 5.0 x4, supports 2280/2260/2242 M.2_2 (Chipset) PCIe 4.0 x4, supports 2280/2260

SATA III

4× SATA 6G

PCI-E x16

1× PCI-E x16 slot, PCIe 5.0 (from CPU)

PCI-E x1

1× PCI-E x1 slot, PCIe 4.0 (from Chipset)

גרפיקה משולבת

1× HDMI 2.1 (4K 60Hz), 1× DisplayPort 1.4 (4K 60Hz)

USB 2.0 / Front

4× USB 2.0

USB 2.0 / Rear

4× USB 2.0

USB 5Gbps Type-A / Front

2× USB 5Gbps Type-A

USB 5Gbps Type-A / Rear

2× USB 5Gbps Type-A

USB 10Gbps Type-C / Front

1× USB 10Gbps Type-C

LAN

Realtek® 8126 5Gbps LAN

Internal IO

Power connectors, CPU fan, system fans, front panel, TPM, RGB, tuning controller

Back Panel Ports

DisplayPort, HDMI™, USB 2.0, USB 5Gbps Type-A, 5G LAN, Audio Connectors, Clear CMOS Button

אודיו

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

מק"ט

4711377410458

Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket Supports DDR5 Memory, Dual Channel DDR5 9066+ MT/s (OC) Ultra Performance: Direct 6 phases with P-PAK, 8-pin CPU power
