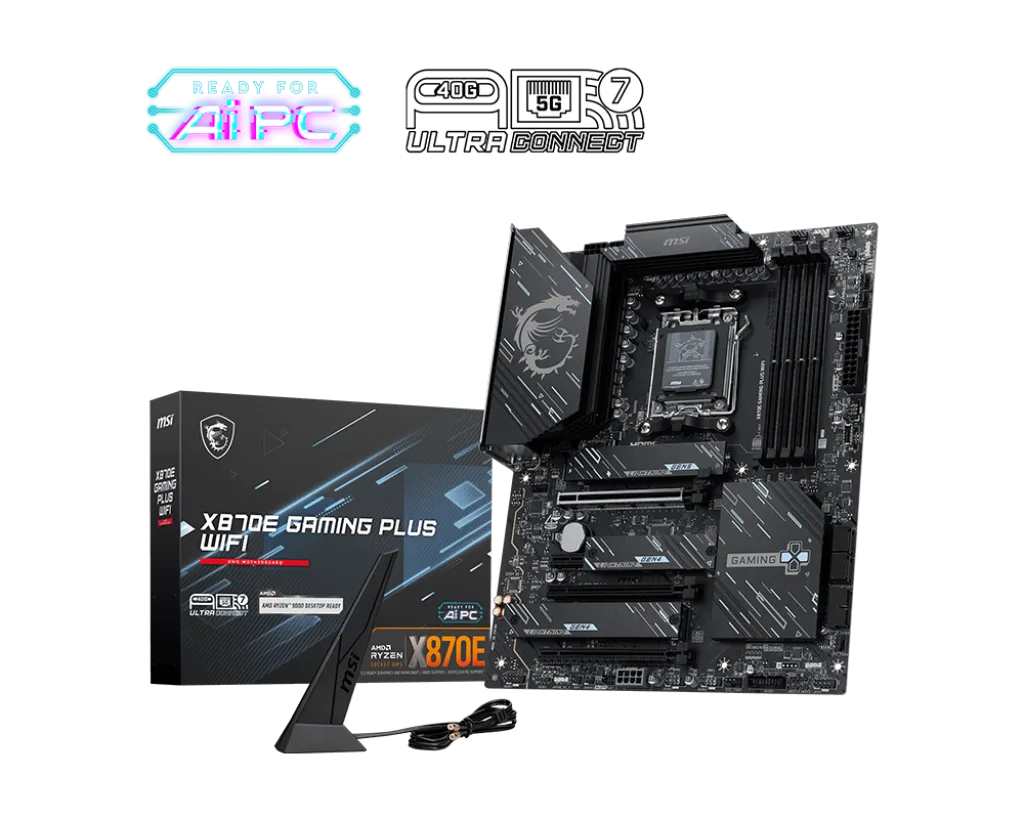

לוח אם X870E GAMING PLUS WIFI

מפרט המוצר

מותג

MSI

קטגוריה

לוחות אם

תמיכה במעבד

Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

תושבת

AM5

מערכת הפעלה

Windows® 11 64-bit

תצורה

ATX (243.84mm × 304.8mm)

ערכת שבבים

AMD X870E

זיכרון

4× DDR5 UDIMM, Maximum 256GB

תמיכה בזיכרון

DDR5 8200–5600 (OC) / 5600–4800 (JEDEC), Dual-Channel, Non-ECC, Un-buffered, AMD EXPO™, CUDIMM

Max Overclocking Frequency

1DPC 1R up to 8200+ MT/s, 1DPC 2R up to 6000+ MT/s, 2DPC 1R up to 6400+ MT/s, 2DPC 2R up to 6000+ MT/s

גרפיקה משולבת

1× HDMI 2.1 (4K 60Hz), 1× Type-C DisplayPort / USB4 (DP 1.4 HBR3, 4K 120Hz)

PCI-E x16

3 (PCIe 5.0 from CPU, PCIe 4.0/3.0 from Chipset)

PCI-E x1

2 (PCIe 3.0 / PCIe 3.0 from Chipset)

M.2 Slot

3× (M.2_1 PCIe 5.0 x4 from CPU, M.2_2/3 PCIe 4.0 x4 from Chipset)

SATA III

4× SATA 6G

תמיכה ב-RAID

SATA: RAID 0/1/10, M.2 NVMe: RAID 0/1/5* (*RAID 5 supported only on Ryzen™ 9000 series)

USB 2.0 / Front

6

USB 2.0 / Rear

4

USB 5Gbps Type-A / Front

4

USB 5Gbps Type-A / Rear

2

USB 10Gbps Type-A / Rear

2

USB 10Gbps Type-C / Front

1

USB 20Gbps Type-C / Rear

1

USB 40Gbps Type-C / Rear

1

LAN

Realtek® 8126VB 5G LAN

Wi-Fi ו-Bluetooth

Wi-Fi 7, Bluetooth 5.4

Back Panel Ports

Clear CMOS, USB 5Gbps Type-A, USB 10Gbps Type-A, USB 2.0, 5G LAN, Wi-Fi/Bluetooth, Audio, Flash BIOS, HDMI, USB 40Gbps Type-C, USB 20Gbps Type-C

נורות

4× EZ Debug LED, 1× EZ Memory Detection LED

מק"ט

4711377347594

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC) Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU
