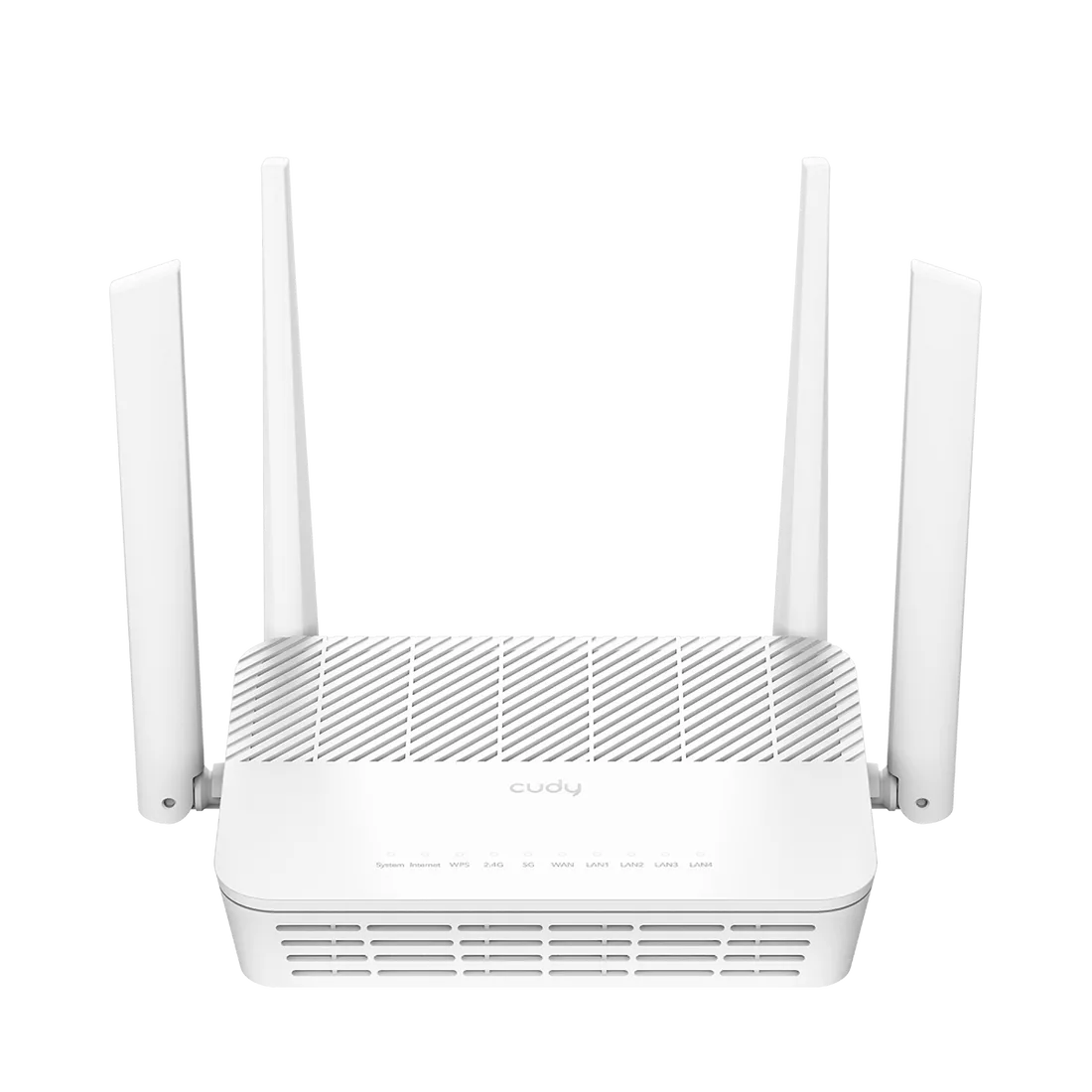

Cudy AX3000 2.5G Mesh Wi-Fi 6 PoE Router WR3000P

מפרט המוצר

מותג

Cudy

קטגוריה

ציוד רשת

תת־קטגוריה

נתבים ומתאמים

מעבד

1.3GHz Dual-Core, ARM Cortex-A53

Flash Memory

128MB (1 Gbit) NAND

זיכרון RAM

512MB (4 Gbit) DDR4

5 GHz Wi-Fi Speed

Up to 2402 Mbps

2.4 GHz Wi-Fi Speed

Up to 574 Mbps

5 GHz Wi-Fi Streams

2 Spatial Streams with 3T3R

2.4 GHz Wi-Fi Streams

2 Spatial Streams

Wi-Fi Antennas

4 × Fixed Antennas

5 GHz Antenna Gain

Up to 5.3 dBi

2.4 GHz Antenna Gain

Up to 5.3 dBi

*FEM / PA-LNA

5 GHz: 3 × Internal, 2.4 GHz: 2 × Internal

2.5G RJ45 Port

1 × 2.5GbE WAN Port

Gigabit RJ45 Ports

4 × Gigabit LAN Ports

Ethernet Notes

2.5G WAN port supports PoE power input

USB Port

1 × USB-A 2.0

Physical Buttons

Power On/Off, WPS, Reset

LED Indicators

System, Internet, 2.4GHz Wi-Fi, 5GHz Wi-Fi, WAN, LAN, USB

Power Input Type

DC Jack, PoE via Ethernet Port

Power Methods

DC, IEEE 802.3af/at PoE

Power Input

12V⎓1.5A

Maximum Power Consumption

11.5W

Idle Power Consumption

4.2W

*Power Adapter Included

Input: 100–240V~, 50/60Hz, Output: 12V⎓1.5A

Wi-Fi Coverage

Up to 220 m (722 ft)

Wall Penetration Performance

Up to 2 wooden walls (<10 cm) or 1 concrete wall (<20 cm) / 2 concrete walls (<10 cm)

Beamforming

Supported

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Operating Humidity

10%–90% RH, non-condensing

Storage Humidity

5%–95% RH, non-condensing

Dimensions (Main Unit)

173 × 123.8 × 33 mm (6.81 × 4.87 × 1.3 in)

Antenna Length

171 mm (6.73 in)

משקל

360.6 g (12.72 oz.)

Installation Options

Desktop, Wall-Mount

Package Contents

WR3000P Router, Power Adapter, Ethernet Cable, Installation Guide

מק"ט

WR3000P

נתב Wi-Fi 6 עם מהירות אלחוטית של עד 3000Mbps, חיבור WAN במהירות 2.5Gbps ו-4 חיבורי Gigabit. כולל תמיכה ב-PoE.
