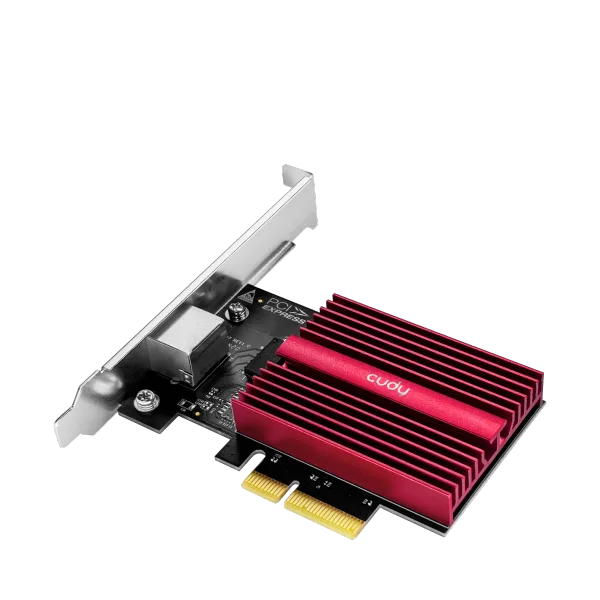

CUDY מתאם רשת 10G PCI Express Adapter(Marvell AQC113) PE10G

מפרט המוצר

מותג

Cudy

קטגוריה

ציוד רשת

תת־קטגוריה

כרטיסי רשת

Feature

Specification

Model Version

PE10G 1.0

10G RJ45 Ports

1

LED

Speed/Link/ACT of Ethernet Port

802.3 Protocols

802.3x Flow Control, 802.3az Power Saving, 802.3i 10BASE-T, 802.3u 100BASE-T, 802.3ab 1000BASE-T, 802.3bz 2.5GBASE-T and 5GBASE-T, 802.3an 10GBASE-T

Data Rate

Auto negotiation between 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, and 10 Gbps

Hardware Requirement

Requires a PCI-E 3.0 x4 or higher slot on the motherboard for powering and Ethernet function

Compatible OS

Windows 10/11 64Bit, Windows Server 2022, Linux, DSM 7.2+

Environment

Ambient Operating Temperature: 0 ℃ ~ 65 ℃ (32 ℉ ~ 149 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉), Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Dimension

Main Part (without the bracket): 100×66×15 mm (3.94×2.6×0.59 inches)

Product Weight

84.5 g (2.98 oz.)

Package Content

PE10G, Low-Profile Bracket, Installation Guide, Ethernet Cable

Ordering Information

Retail Package Dimension: 220×144×35 mm (8.66×5.67×1.38 inches), Retail Package Weight: 247.0 g (8.71 oz.), Units per Carton: 20, Carton Net Weight: 4.9 kg (10.8 lbs), Carton Gross Weight: 5.5 kg (12.13 lbs), Carton Dimension: 38.6×30.5×23.9 cm (15.2×12.0

מק"ט

PE10G

תכונות עיקריות: פורט Ethernet 10 Gbps תמיכה ברמות מהירות: 10G / 5G / 2.5G / 1G / 100M / 10M Wake on LAN, Flow Control מתאים ל-PC, Servers, Synology NAS ועוד תואם Windows, Linux, DSM ועוד
