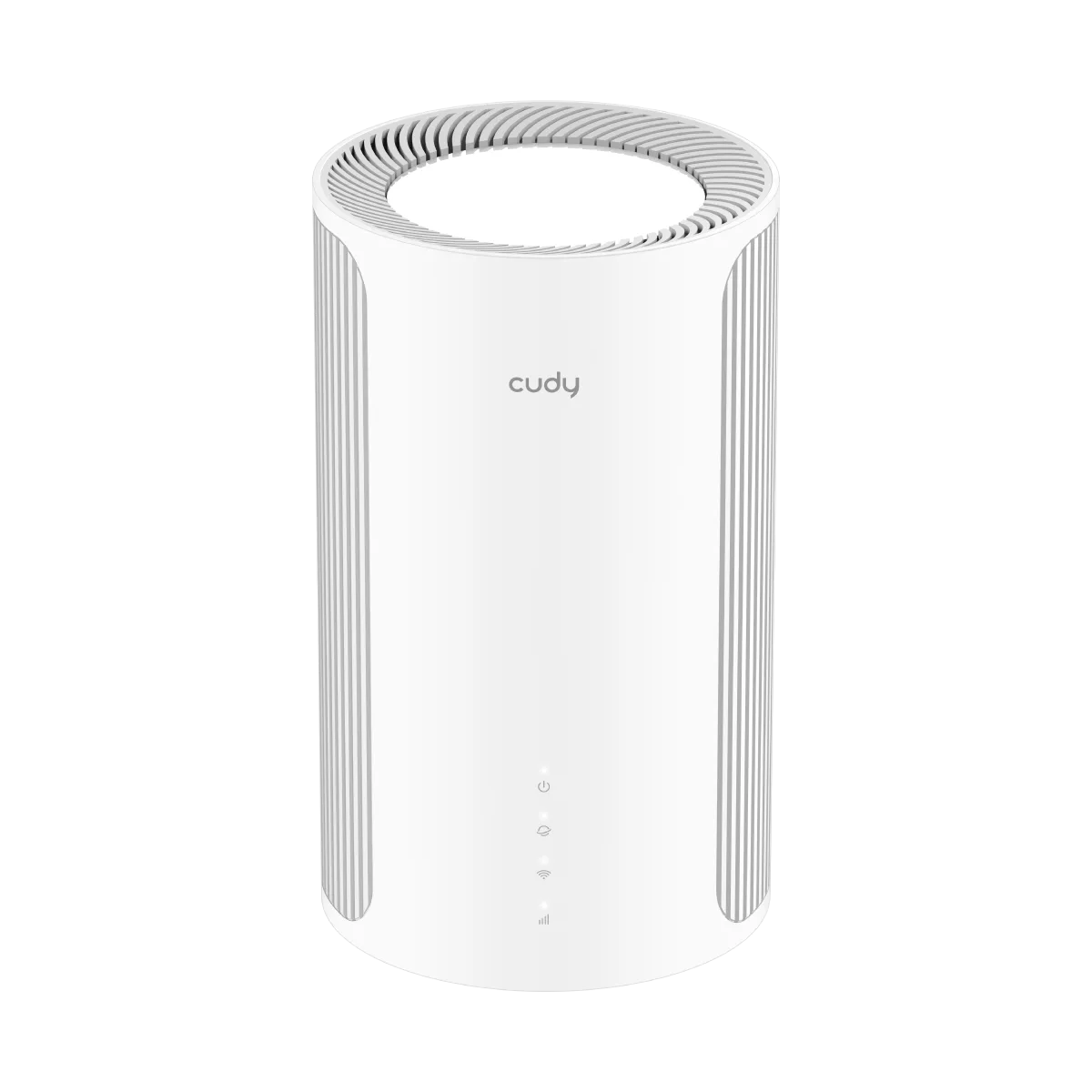

CUDY P2_EU

מפרט המוצר

מותג

Cudy

קטגוריה

ציוד רשת

תת־קטגוריה

נתבים ומתאמים

מק"ט

P2

מעבד

1.3 GHz Dual-Core, ARM Cortex-A53

Flash/ROM

128 MB (1 Gbit) NAND

DDR/RAM

256 MB (2 Gbit) DDR3

Cellular Standards

5G Rel. 15, DL 4G Cat. 12/ UL 4G Cat. 13

Cellular Antennas

4× Internal, 2× SMA Connectors for Customized Antennas

Detachable Cellular Antennas Connector

SMA Female

SIM Options

1× Nano SIM Slot, eSIM (Optional for ISP Orders)

5GHz Wi-Fi Speed

2402 Mbps

2.4GHz Wi-Fi Speed

574 Mbps

5GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

Internal

5GHz Antenna Gain Max

4.07 dBi

2.4GHz Antenna Gain Max

3.98 dBi

Beamforming

כן

FEM or PA/LNA

5GHz: 3× Internal, 2.4,GHz: 2× Internal

Range Performance

Max: 170 m, (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Gigabit RJ45 Ports

2

Ethernet Notes

1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports

FXS Ports

1× RJ11 (VoNR/VoLTE) (Optional)

DC Input

12V 1.5A

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1.5A DC

סביבה

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉), Operating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5% ~ 90% non-condensing

CUDY AX3000 Wi-Fi 6 5G Mesh Router Modem SIM
