Cudy

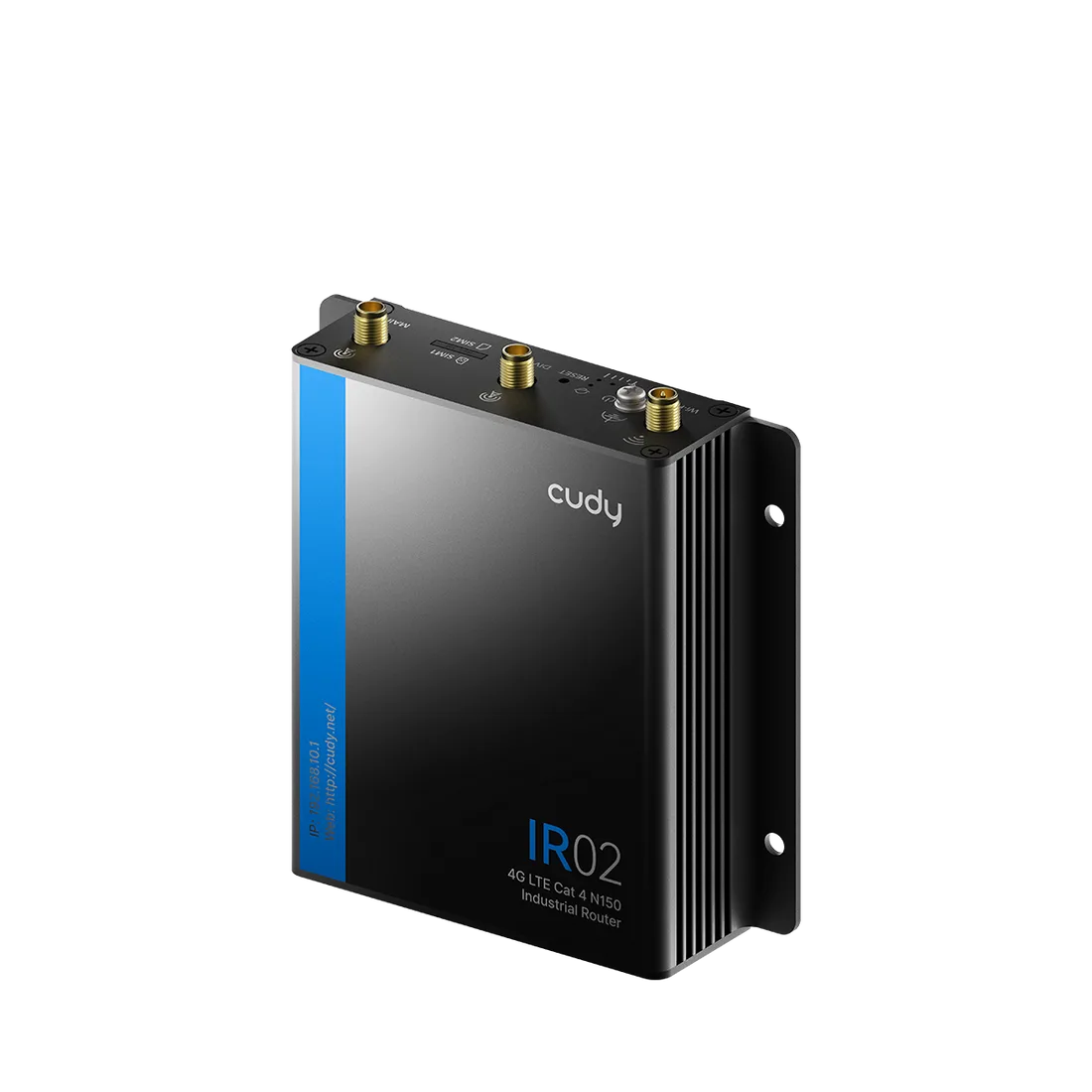

Cudy 4G LTE Cat 4 N150 Industrial Wi-Fi Router IR02_EU
מק״ט: IR02_EU · AM
₪474
המחיר כולל מע״מ
✓ המוצר זמין במלאי
- ⏱️ אספקה בתיאום
- 🏬 אפשרות לאיסוף עצמי
- 🔒 הזמנה מאובטחת
מפרט המוצר
- מותג
- Cudy
- קטגוריה
- ציוד רשת
- תת־קטגוריה
- נתבים ומתאמים
- מעבד
- 580MHz Single-Core, MIPS24KEC
- Flash Memory
- 16MB (128 Mbit) NOR
- זיכרון RAM
- 128MB (1 Gbit) DDR2
- Cellular Standard
- 4G LTE Cat. 4
- SIM Slots
- 2 × Nano SIM
- Cellular Antennas
- 2 × Detachable (1.5 m cable length)
- Cellular Antenna Connector
- SMA Female
- Available Versions
- EU, US, ME, LA
- Maximum Download Speed
- Up to 150 Mbps
- Maximum Upload Speed
- Up to 50 Mbps
- Cellular Technology
- DL 2×2 MIMO
- GNSS Location Tracking
- Optional (Customized Orders)
- GNSS Antennas
- Optional (Customized Orders)
- Wi-Fi Speed
- Up to 150 Mbps (2.4 GHz)
- Wi-Fi Streams
- 1 Spatial Stream
- Wi-Fi Antennas
- 1 × Detachable
- Wi-Fi Antenna Connector
- RP-SMA Female
- Wi-Fi Coverage
- Up to 80 m (262 ft)
- Wall Penetration
- One wooden wall (<10 cm) or one concrete wall (<10 cm)
- Ethernet Ports
- 2 × 10/100 Mbps RJ45
- Ethernet Configuration
- Port 1 configurable as WAN/LAN, Port 2 LAN
- Industrial Interface
- 1 × 7-PIN Industrial Socket
- Supported Industrial Protocols
- RS232, RS485, Dual RS485 (customized models only)
- Digital Input
- 1 × Galvanically Isolated Input (0–4V = State 0, 9–30V = State 1)
- Relay Output
- 1 × Normally Open Internal Relay (Max. 30V DC / 250mA)
- Ground Connection
- 1 × GND for Digital Input/Output
- LED Indicators
- Power, Cellular, Cellular Signal Strength, Link/ACT for Ethernet Ports
- Physical Buttons
- Reset Button
- Power Interface
- 2-PIN DC Connector
- Power Input
- 5–36V DC
- Power Adapter Included
- Input: 100–240V~, 50/60Hz / Output: 12V⎓1A
- Maximum Power Consumption
- 7W
- Idle Power Consumption
- 1W
- Grounding Method
- Grounding Point
- Power Protection
- Reverse Polarity Protection, Overvoltage Protection, Surge Protection
- ESD Protection
- IEC/EN 61000-4-2 Level 3 (Contact 6kV, Air 8kV)
- EMC Compliance
- IEC/EN 61000-4-3, 4-4, 4-5, 4-6, 4-8, 4-9, 4-10
- Shock Resistance
- IEC/EC 60068-2-27
- Vibration Resistance
- IEC/EN 60068-2-6
- Free Fall Resistance
- IEC/EN 60068-2-32
נתב תעשייתי 4G LTE עם תמיכה ב-Wi-Fi, Ethernet ו-VPN, המיועד לחיבור יציב ומאובטח במערכות בקרה, ניטור, ערים חכמות ויישומים תעשייתיים.
