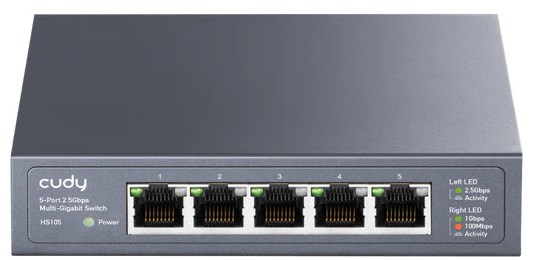

CUDY HS105-IL

מפרט המוצר

מותג

Cudy

קטגוריה

ציוד רשת

Switching Capacity

25 Gbps

Throughput

18.6 Mpps

Packet Buffer

4 Mbit

MAC Address

8K

Jumbo Frame

15 KB

Transfer Mode

Store and forward

MTBF

100000 hour

Network protocol

IEEE802.3u (100Base-TX) | IEEE802.3ab (1000Base-T) | IEEE802.3bz (2.5GBase-T) | IEEE802.3x (Flow control)

Network Medium

100Base-TX : Cat5 or higher (≤100m) | 1000Base-TX : Cat5 or higher (≤100m) | 2.5GBASE-T: Cat 5e (≤50m), Cat 6 or higher (≤100m)

Working Environment

Working Temperature：-0~40°C | Storage Temperature：-40~70°C | Working Humidity ：0%~100%, non-condensing | Storage Temperature：5%~90%, non-condensing

Structure Size

Product Size：119×85×28 mm (4.69×3.35×1.1 inches)

Installation

Desktop, Wall-Mounting

Power Saving

Saves power consumption when ports are idle

Power Voltage

Adpter Input Voltage ：AC 100-240 V | Switch Input Voltage:：DC 12V 1A

Power Consumption

Max: 10.5W | Idle: 4.7W

ESD Protection

±4KV contact discharge and ±8KV air discharge

Grounding Point

Grounding Point

מק"ט

HS105-IL

● 5× 100/1000/2500 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX ● IEEE 802.3x flow control and 4 Mbit packet buffer prevents packet loss ● Power saving strategy saves power consumption when ports are idle ● IGMP for high-efficienct multi-cast transmitting ● Loop detection blocks loop automatically, improving reliability ● Desktop and wall-mounting
