CUDY GS1016

מפרט המוצר

מותג

Cudy

קטגוריה

ציוד רשת

תת־קטגוריה

מתגים

קצב רענון

60HZ

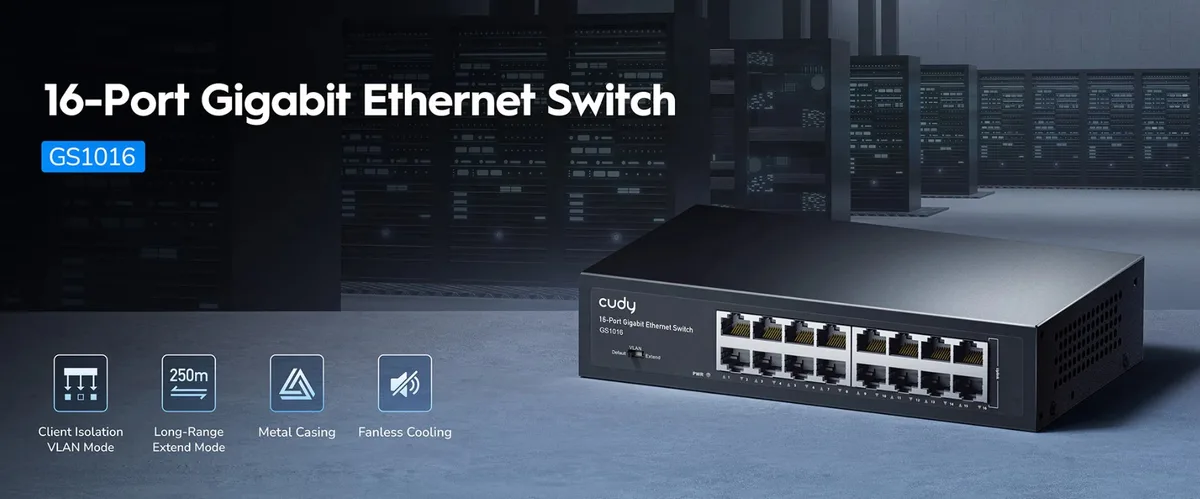

16-Port Gigabit Unmanaged Switch GS1016 3.0 A 16-GbE switch with VLAN/Extend functions and a fanless cooling system. 16× GbE Default/VLAN/Extend Modes Extend for 250 Meters Transmission VLAN for Clients Isolation Desktop, Rack-Mount 200×118×44 mm (7.87×4.65×1.73'') 617 g (21.76 oz.) Model Version GS1016 3.0 Interfaces Gigabit RJ45 Ports 16 Extend Mode Ports #1~#14 VLAN Mode Ports #1~#14 LED Power Speed/Link/ACT of Each Ethernet Port Power Input AC Inlet Physical Buttons VLAN/Default/Extend DIP Switch Performance Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. MAC Address Table 8192 Max Switching Capacity 32 Gbps Max Forwarding Rate 23.808 Mpps Jumbo Frame 15 KB Packet Buffer 4 Mbit Power Basic Power Saving True Power Methods AC AC 90~260V 50/60Hz Max Power Consumption 7.8W Idle Power Consumption 4.5W Switching 802.3 Protocols 802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.1 Protocols 802.1p: LAN Layer 2 QoS/CoS L2 Features IGMP Snooping Loop Prevention Loop Detection DSCP QoS 802.1p QoS Reliability Grounding Methods Three-Prong Plug Grounding Point EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV RJ45: CM 4kV Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing Mechanical Dimension 200×118×44 mm 7.87×4.65×1.73 inches Product Weight 619 g (21.83 oz.) Casing Material Metal Installation Desktop Rackmount via Brackets Package Content GS1016 Power Cord Installation Guide Mounting Kit Ordering Information Retail Package Dimension 230×202×78 mm 9.06×7.95×3.07 inches Retail Package Weight EU / US: 1116 g (39.37 oz.) Units per Carton 10 Carton Net Weight EU / US: 11.2 kg (24.69 lbs) Carton Gross Weight EU / US: 12.1 kg (26.68 lbs) Carton Dimension 48.2×41×22.1 cm 18.98×16.14×8.7 inches Default/VLAN/Extend Multi-Mode VLAN Mode Protect clients from attack from client-side hacking. With VLAN mode, downlink ports 1-14 can only communicate with uplink ports. Extend Mode Prolong the transmission distance of ports 1-14 to a maximum of 250 meters and simplify installation. (These ports' speed will be capped at 10 Mbps) DSCP/802.1p QoS Itentify the packets with DSCP headers and forward those with higher priority first. IGMP Snooping Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them. Loop Prevention Blocks the ports automatically when it detects a loop in the network, preventing downtime caused by misoperation. Fanless Cooling Low heat generation and fanless design cater to noise-sensitive enironments. Installation and Dimension Mounting Brackets Included
