Cudy

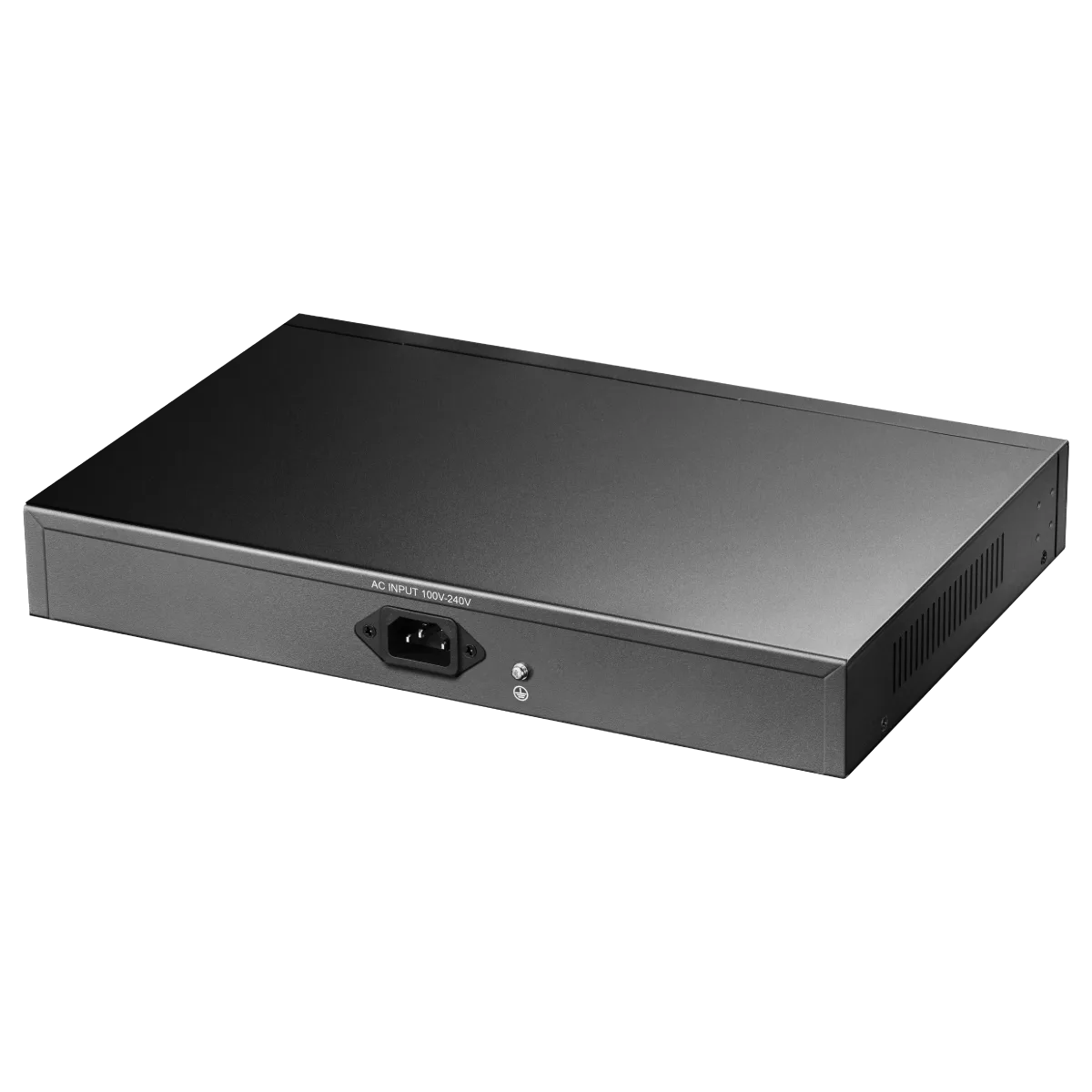

FS1018PS1-IL מתג 16 פורטים CUDY
מק״ט: FS1018PS1-IL · AM
₪329
המחיר כולל מע״מ
✓ המוצר זמין במלאי
- ⏱️ אספקה בתיאום
- 🏬 אפשרות לאיסוף עצמי
- 🔒 הזמנה מאובטחת
מפרט המוצר
- מותג
- Cudy
- קטגוריה
- ציוד רשת
- תת־קטגוריה
- כרטיסי רשת
- מק"ט
- FS1010PG-IL
- Power Supply
- Built-in power supply
- Voltage Range
- AC100~240V
- Consumption
- 190W for 16 PoE
- Speed
- 1~16 Port: 10/100/Mbps|G17~G18 Port:10/100/1000Mbps|G19 Port: SFP 1.25bps
- Transmission Distance
- 100Meter(328ft) for RJ-45|The distance is determined by the optical module|The optical module is optional
- Ethernet Standard
- IEEE 802.3 802.3u 802.3ab 802.3af/at
- Switching Capacity
- 7.2G
- Transfer Rate
- 14880 pps for 10Mbps|148800 pps for 100Mbps|1488000 pps for 1000Mbps
- MAC Adsress
- 4K MAC sddress table
- On(Green)
- The port is connecting
- Blinks
- The port is receiving or transmitting data.
- Off
- The port is notl inked successfully with the device
- On(Oranfe)
- PD is connected
- PoE Pin Assignmnet
- V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)
- Working Temperature
- 0~40°C
- Storage Temperature
- -40~70°C
- Humidity Non Condesing
- 0~85%
- Dimension L*W*H
- 280*180*44mm
- צבע
- Gray
● 200 watts PoE power supply, up to 30 watts per port ● 2 10/100/1000M uplink ports +1 SFP Port ● 16 10/100M PoE+ ports ● CCTV mode support remote PoE feeding up to 250m ● VLAN mode isolate each PoE Ports for security ● IEEE 802.3at / IEEE 802.3af standard compliant ● Plug&play, simple setup with no configuration needed ● Watchdog reactivates the abnormalPD by resuming POE power
